How To Rescue a Virtual Machine

This guide explains how to rescue a virtual machine when you cannot access it normally. VM rescue allows you to boot your VM from a temporary rescue image to fix problems like lost passwords, system corruption, or configuration errors.

When To Use VM Rescue

Use VM rescue when you experience:

  • Lost or forgotten login credentials
  • System configuration errors preventing access
  • Boot problems after system updates
  • Accidental changes that make the VM unreachable

Prerequisites

Before starting the rescue process, ensure you have:

  • Access to your OpenStack project with the necessary permissions
  • Basic understanding of Linux command line (for troubleshooting tasks)

Important Notes:

  • While a VM is in rescue mode, the Operations Center will not allow project changes. Complete the rescue process before making other modifications to your project
  • Always use tested rescue images to avoid complications

Method 1: Using the Horizon Dashboard

Follow these steps to rescue your VM through the web interface:

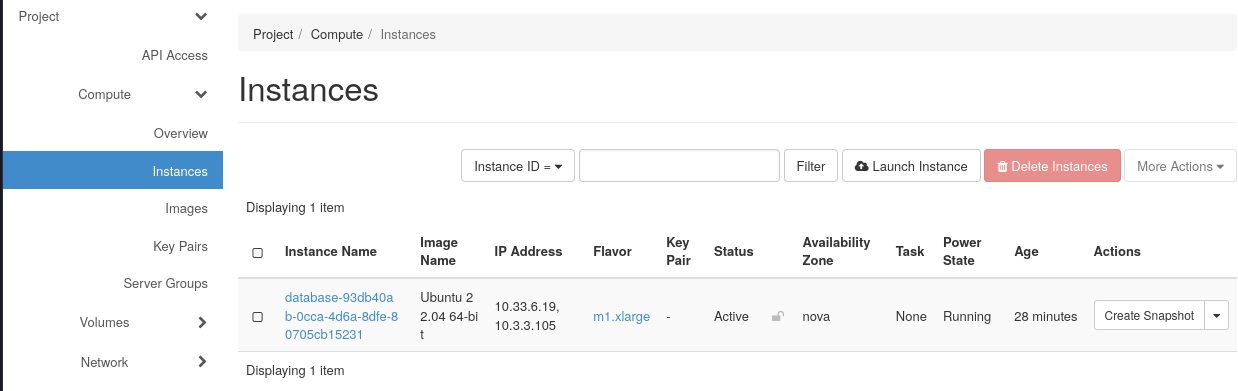

Step 1: Access Your Instances

  1. Log in to the Horizon dashboard
  2. Navigate to Project → Compute → Instances
  3. Find your VM in the instances list

Instances

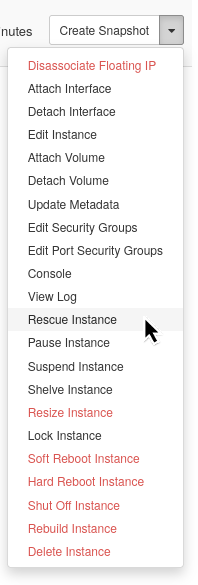

Step 2: Start the Rescue Process

  1. Click the dropdown arrow next to your VM’s name in the Actions column
  2. Select Rescue Instance from the menu

rescue

Expected Result: A rescue dialog window will appear.

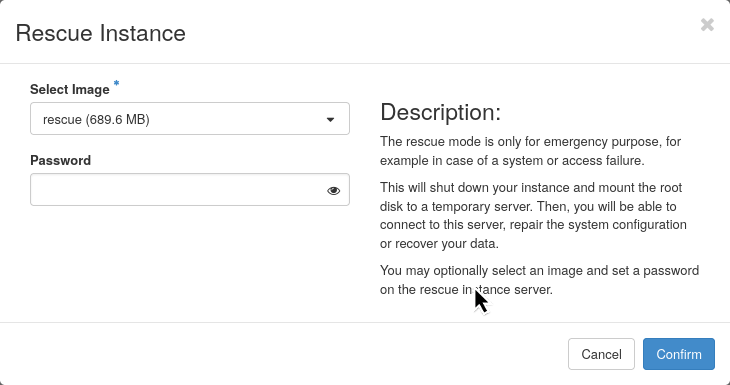

Step 3: Select Rescue Image

  1. In the rescue dialog, choose the rescue image from the dropdown menu
  2. Important: Only select tested rescue images to avoid errors
  3. Click Rescue Instance to confirm

rescue-dialog

Expected Result: Your VM will begin rebooting into rescue mode. This process takes 1-2 minutes.

Step 4: Access the Rescue Environment

Once your VM is in rescue mode, you have two options:

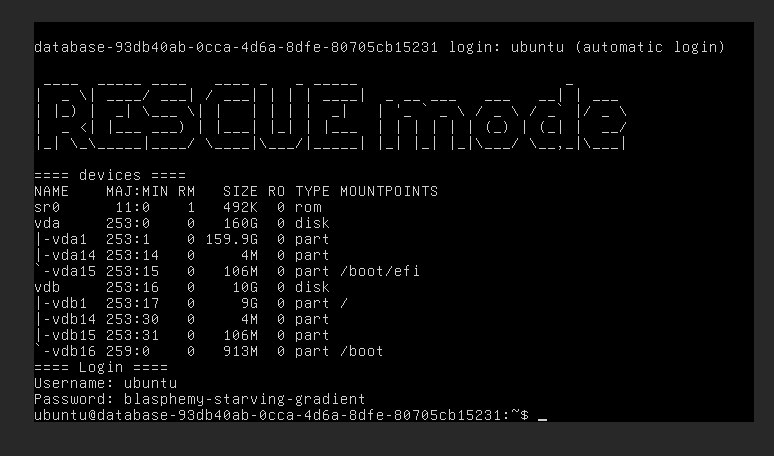

Option A: Use the Console

  1. Click on the name of the instance and select the Console tab
  2. You’ll see the rescue environment with your original disk mounted
  3. In the console, you will see the newly generated password for the user ubuntu. The password can be used to login via ssh

rescue-console

Option B: SSH Access

  1. Use SSH to connect via your VM’s floating IP address
  2. Use the user ubuntu and the newly generated password (see above)
  3. Optional: the operation created by Operations Center is also available with the instances password or ssh keys as usual

Note: The original VM disk is not mounted by default, usually /dev/vda (the last disk in the rescue environment is the rescue image).

Step 5: Perform Your Repairs

  1. Mount your original disk if needed: mount /dev/vda1 /mnt
  2. Perform necessary troubleshooting or recovery tasks
  3. Make required changes to fix the issue
  4. Unmount the disk when finished: umount /mnt

Step 6: Exit Rescue Mode

  1. Return to the Instances page in Horizon
  2. Click the Actions dropdown for your VM
  3. Select Unrescue Instance
  4. Wait for the VM to reboot into normal mode

Expected Result: Your VM returns to normal operation with your fixes applied.

Method 2: Using the OpenStack CLI

For advanced users who prefer command-line access:

Step 1: Prepare Your Environment

  1. Ensure you have the OpenStack CLI installed and configured
  2. Source your OpenStack credentials
  3. Verify access to your project

Step 2: Start the CLI Rescue Process

Replace <server_id> with your VM’s ID:

openstack server rescue --image "rescue" <server_id>

Expected Result: The command will return confirmation that the rescue process has started.

Step 3: Access the CLI Rescue Environment

Option A: Get Console Access

openstack console url show <server_id>

Option B: Connect via SSH

  1. Check your server’s IP address:
openstack server show <server_id>
  1. Connect via SSH:
ssh ubuntu@<floating_ip_address>

Step 4: Perform CLI Repairs

  1. Your original disk is available as /dev/vda
  2. Mount it if needed: mount /dev/vda1 /mnt
  3. Make necessary repairs
  4. Unmount when finished: umount /mnt

Step 5: Exit CLI Rescue Mode

Return your VM to normal operation:

openstack server unrescue <server_id>

Expected Result: Your VM will reboot into normal mode with your fixes applied.

Troubleshooting

Common Issues and Solutions

Issue: “Driver Error: The instance is in error state after rescue”

Symptoms:

  • Error message appears in instance details: “Instance cannot be rescued: Driver Error: internal error: process exited while connecting to monitor”
  • VM enters error state during rescue

Cause: The rescue image is missing required properties (hw_rescue_device=disk and hw_rescue_bus=virtio).

Solution:

  1. Use only tested rescue images provided in the system
  2. If using a custom image, ensure it has the required properties
  3. Retry the rescue process with a valid rescue image

If the problem persists:

  • The unrescue command may fail and put the VM into error state
  • Open a Helpdesk ticket with detailed information about what happened
  • Our support team may be able to recover the instance at the storage level

Issue: Cannot connect to rescued VM

Symptoms:

  • Cannot access rescue console
  • SSH connection fails
  • No response from VM

Solutions:

  1. Check VM status: Ensure the VM is fully in rescue mode (status shows “RESCUE”)
  2. Wait for boot completion: Allow 2-3 minutes for the rescue environment to fully load
  3. Verify network access: Confirm floating IP is assigned and accessible
  4. Use console access: Try the Horizon console if SSH fails

Issue: Cannot find original disk in rescue environment

Symptoms:

  • Expected disk /dev/vda is not visible
  • Cannot mount original filesystem

Solutions:

  1. List all disks: Run lsblk or fdisk -l to see all available disks
  2. Check different device names: Look for /dev/vdc, /dev/xvdb, or similar
  3. Verify disk attachment: Check if the original disk is properly attached in rescue mode

Frequently Asked Questions

What login credentials should I use in rescue mode?

You can use the same username, password, or SSH keys as your original VM. The rescue environment applies the same authentication settings as your original instance.

The rescue image is generating a new password for the ubuntu user on start. The password is visible on the console.

How long does the rescue process take?

  • Starting rescue mode: 1-2 minutes
  • Troubleshooting time: Varies based on the issue
  • Exiting rescue mode: 1-2 minutes

Can I access files from my original VM?

Yes, your original VM’s disk is mounted in the rescue environment, typically as /dev/vda. You can mount this disk to access and modify files from your original system.

What happens to my data during rescue?

Your original data remains safe and unchanged. The rescue process only changes how your VM boots—it doesn’t modify your original disk or data.

Additional Information

Security Considerations:

  • Only authorized users with project access can initiate rescue operations
  • All normal access controls and logging remain active during rescue
  • Complete rescue operations promptly to restore normal security posture
